AWO‑534G

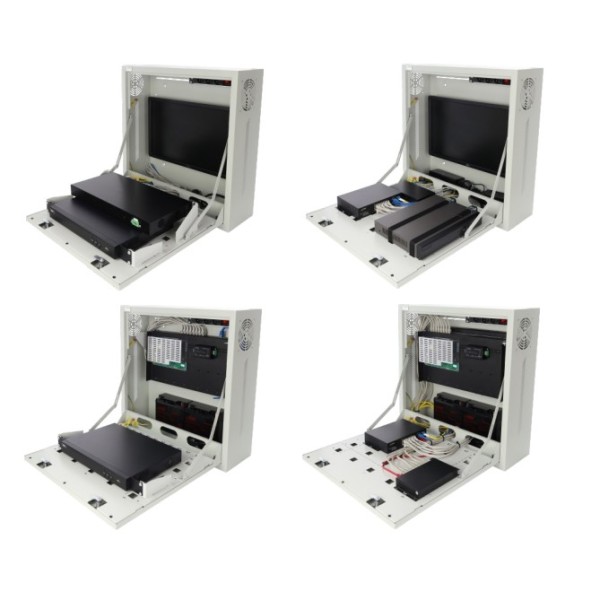

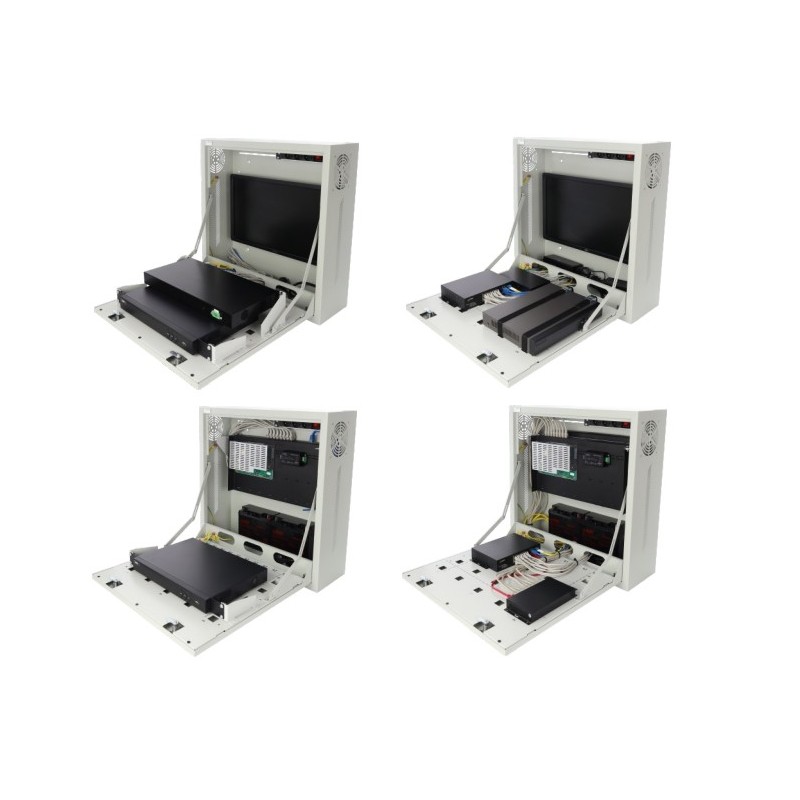

Complete CCTV solution enclosure (power supply, NVR‑Switch or DVR, 24" monitor) dimensions 600×600×200

1. General Overview

Product Name: Metal CCTV Enclosure – AWO534G (Gray)
Type: Enclosure / cabinet for video surveillance systems, designed to house equipment such as DVRs, NVRs, monitors, PoE switches, power supplies, and accessories.
Usage: Vertical installation, wall-mounted (surface), suitable for locations with limited depth.

2. Dimensions & Structure

External Dimensions: 600 × 600 × 200 mm (±2 mm)
Distance from back to wall: ~2.5 mm
Internal space for recorder: ~490 × 385 × 175 mm
Profile: Supports 19" RACK mounting in 1U, 2U, 3U positions (vertical/horizontal)
Material: Cold-rolled SPCC steel, thickness 1.2 mm / 1.5 mm
Color: Gray RAL7035
Mounting: Surface wall-mounted
Warranty: Approximately 2 years

3. Security & Protection

Sturdy metal structure providing good anti-tamper protection
Can be locked with keys (two keys included in some variants)
Complies with certain personal data security requirements (GDPR) according to external suppliers

4. Equipment Compatibility

Monitor: Standard VESA mount (50×50 / 75×75 / 100×100)
DVR / NVR: Can be secured using straps or compatible mounting brackets (ZPR accessories)
PoE Switch / Patch Panel / Power Supply: Can be installed in the 19" rack
Power & Batteries: Space available for backup batteries (e.g., 4×7 Ah or 2×17 Ah)
Ventilation: Optional fan can be added (e.g., ARAW45)

5. Accessories & Options (Not Included)

The enclosure can be complemented with optional equipment:

Recorder mounting brackets (ZPR)
Thermostat-controlled fan (e.g., ARAW45)
Power distribution systems, DC/DC adapters, PoE switches, batteries, power strips, etc.
Anti-vandal and grounding elements

6. Key Advantages

Integrated solution to centralize CCTV equipment (DVR/NVR, switch, monitor, power supply)
Vertical mounting suitable even for shallow walls or tight spaces
Robust design with anti-theft options and GDPR compliance
Easy integration of power and PoE components
