CCP-E(LED)
Conventional manual call point with LED compliant with EN54-11 standards, VdS & LPCB certified

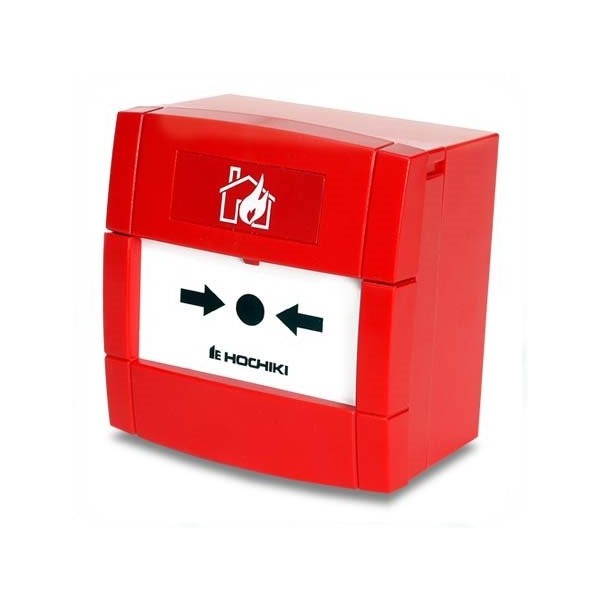

CCP-E (LED) – Conventional Manual Call Point with LED
EN54-11 Compliant – VdS & LPCB Certified
1. General Description
The CCP-E (LED) is a conventional manual call point designed for fire detection and fire alarm systems. It allows building occupants to manually trigger a fire alarm in case of fire or emergency.
The device is activated by pressing the resettable membrane (simulated break glass), which immediately sends an alarm signal to the fire alarm control panel.
This manual call point is equipped with an integrated LED indicator that provides a clear visual indication when the alarm has been activated.
The unit complies with the EN54-11 standard and is certified by VdS and LPCB, ensuring high reliability and compliance with international fire safety standards. 🔥🚨
2. Main Features
-
Conventional manual call point for fire alarm systems
-
Integrated LED indicator for alarm status
-
Compliant with EN54-11 standard
-
Certified by VdS and LPCB
-
Resettable membrane (simulated break glass)
-
Easy reset using a special key
-
High-visibility red housing
-
Simple wiring terminals for easy installation
-
Robust and reliable design
3. Operation
-
The user presses the activation membrane on the call point.
-
The internal mechanism activates the alarm circuit.
-
An alarm signal is transmitted to the fire alarm control panel.
-
The LED indicator lights up to confirm activation.
-
After intervention, the unit can be reset using the reset key.
4. Technical Characteristics
-
Type: Conventional manual call point
-
Standard: EN54-11
-
Certifications: VdS / LPCB
-
Indication: LED alarm indicator
-
Material: High-resistance red ABS
-
Installation: Indoor
-
Reset method: Reset key
-
Mounting: Surface or flush mounting
-
Compatibility: Suitable for conventional fire alarm control panels
5. Applications
The CCP-E (LED) manual call point is suitable for a wide range of buildings, including:
-
Office buildings
-
Shopping centers
-
Hospitals
-
Hotels
-
Schools and universities
-
Industrial facilities
It is an essential component of fire protection systems, allowing occupants to quickly activate the alarm in case of fire or emergency. 🔴🚨
